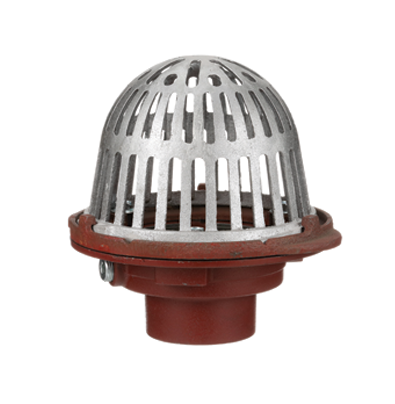

Mifab R1100 8" Cast Iron Roof Drain

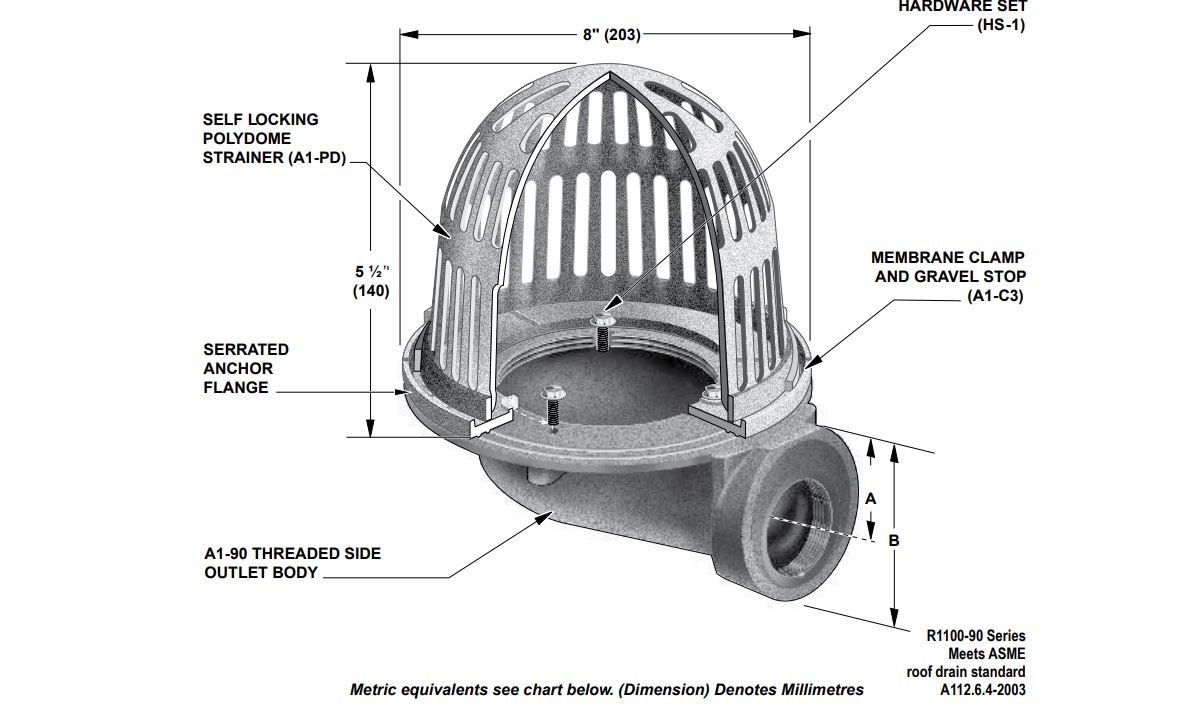

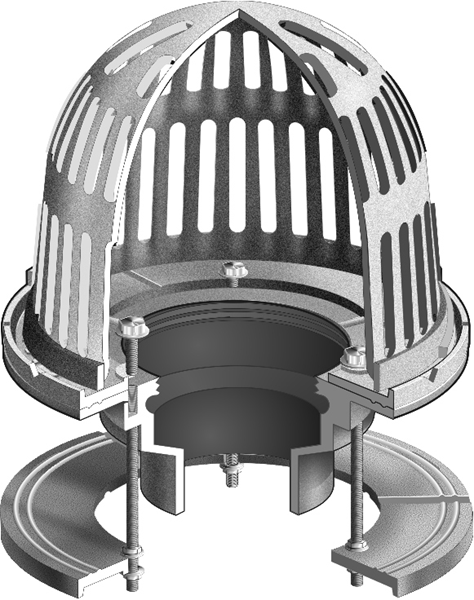

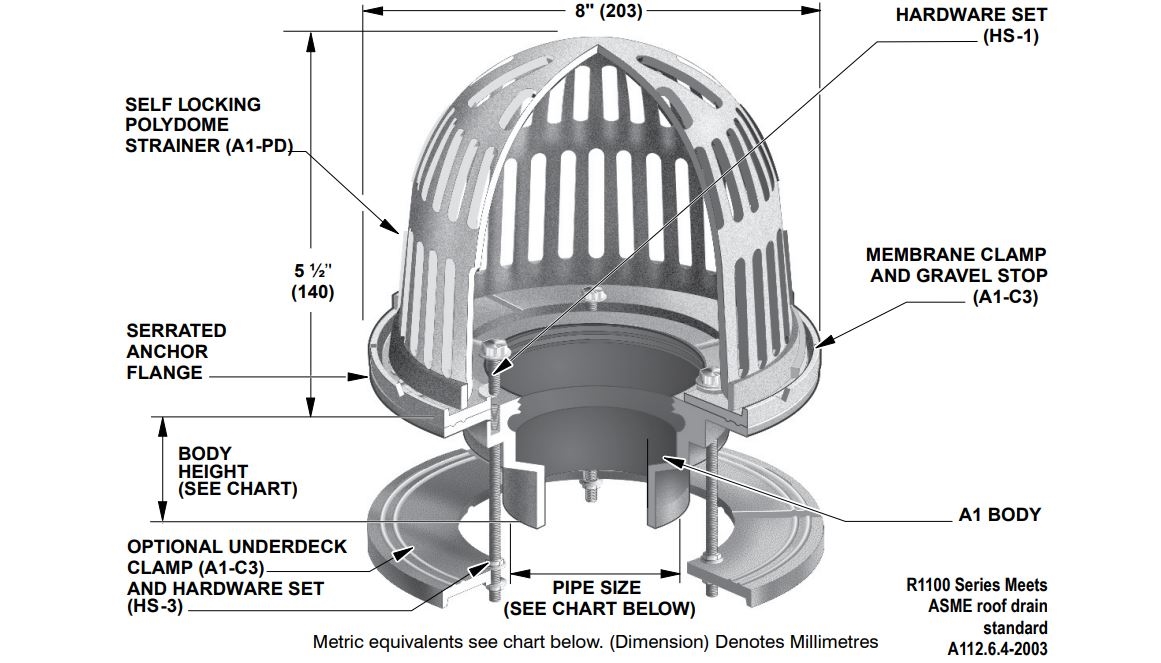

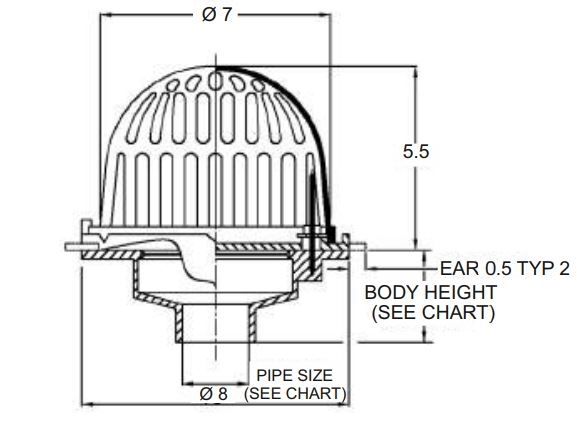

Mifab R1100 lacquered cast iron roof drain with anchor flange, cast iron waterproofing membrane clamp ring with integral gravel stop, Bottom (No hub, Push-on, inside Caulk, or Threaded) outlet or 90 Threaded Side outlet, and

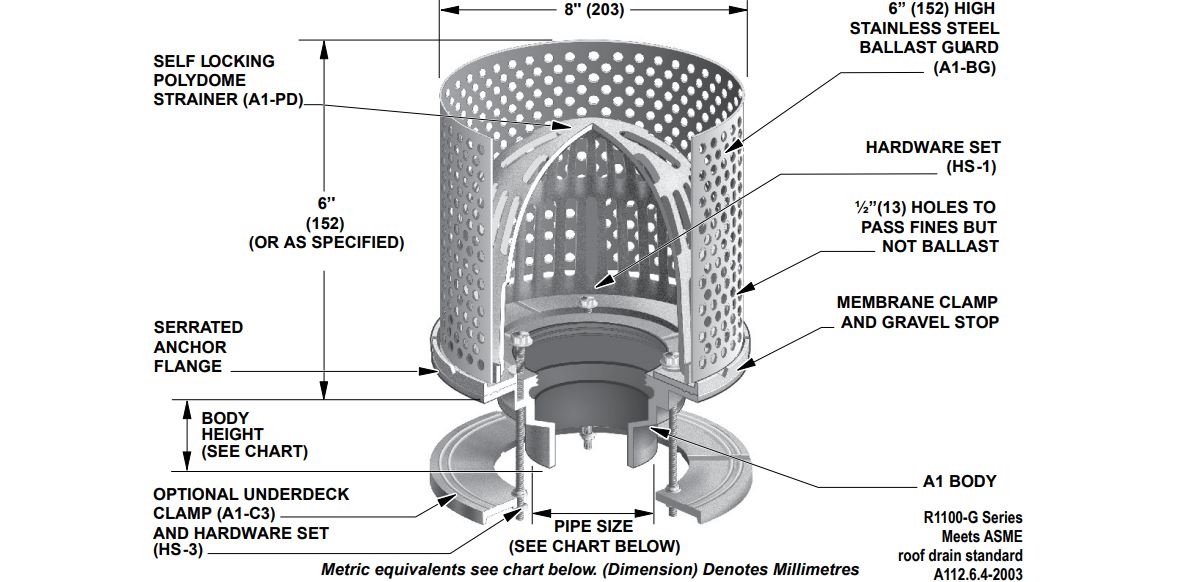

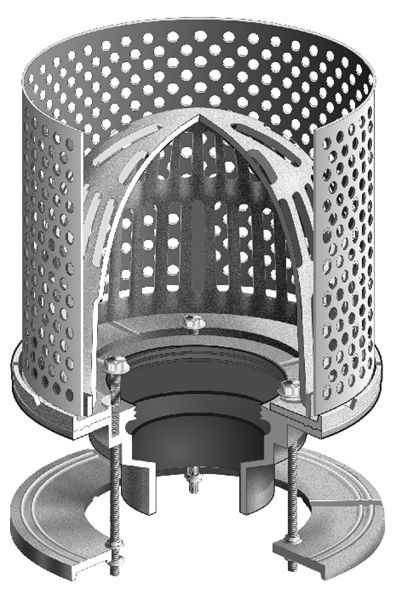

standard self-locking Poly or Cast Iron dome strainer with a free area of 43 square inches. Additional option selections for Sump Receiver, Under Deck Clamp, External water dam, Adjustable Internal water dam, Stainless Steel Mesh over dome, or Stainless Steel Ballast Guard for I.R.M.A Roofs.
Please Choose Your Dome Material Type, Outlet type, Pipe Size, and any additional options. "Configured Base Price" is for the -Poly [ Poly Dome ] and NH [ No-Hub Outlet ] options. There are additional costs for Threaded & 90 Degree Threaded outlets, Cast Iron Dome material, and additional options noted in the Option Selections.
Function:
Used in any type of flat roofs. Large free area dome provides for efficient drainage of rain water and prevents debris from entering the
drain line. Extra wide anchor flange and membrane clamp with tongue in groove design provides for secure grip of membrane and roof flashing
materials.
Meets ASME roof drain standard A112.6.4-2003
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Important Information:
*Please check product information and specification sheets, or give us a call if you need help selecting your product, need more information, or parts, before you order. Some products are not eligible for return and eligible returns may have fees. Please see our return policy.
*Pictures are a representation only and may not match actual product. The pictures may be showing color or finish of what it may look like.
*Products are subject to availability as they are dependent on configurations ordered. With the many product configurations, we do not show stock on our website. Availability will need to be verified upon order or you may contact us to check stock prior to ordering. If availability will be longer than 3 business days, we will notify you. Some configurations may need to ship from the factory and lead times may vary.
*Our listings contain the most common or recommended product selections and not all products and options may be listed. If you do not see a Product, Option, or need parts, please contact us to help in placing the order for the product you need and to get pricing and availability.
|
|
|
|
|
|
|
