Mifab R1270-RG Combined Large Sump Cast Iron Roof Drain with Secondary Overflow and 19" Cast Iron RoofGuard Domes

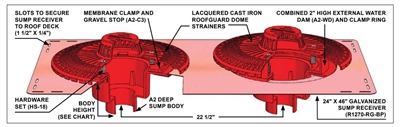

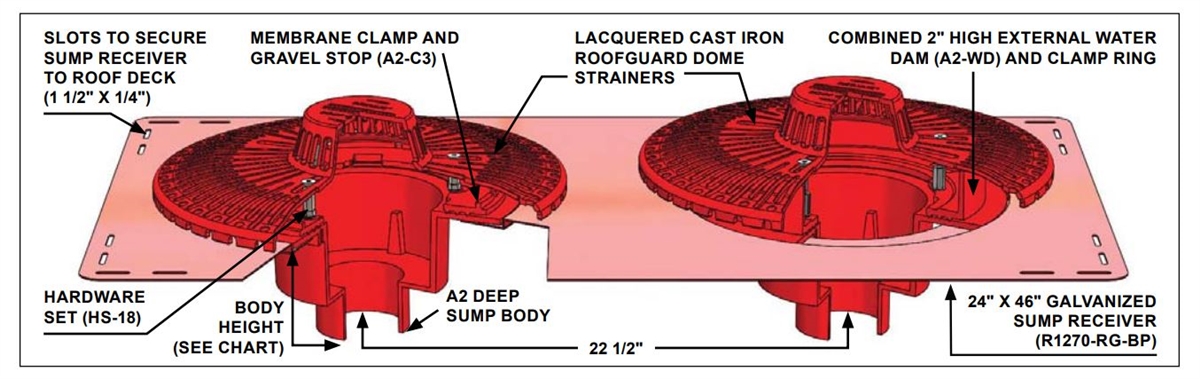

R1270-RG combined large sump roof drain and secondary
overflow system; consisting of 24"x46" galvanized steel sump receiver, two lacquered
cast iron bodies with 15" diameter anchor flange, one cast iron waterproofing
membrane clamp ring with integral gravel stop, and second 2” high cast iron
external combined water dam and waterproofing membrane clam ring. Complete with

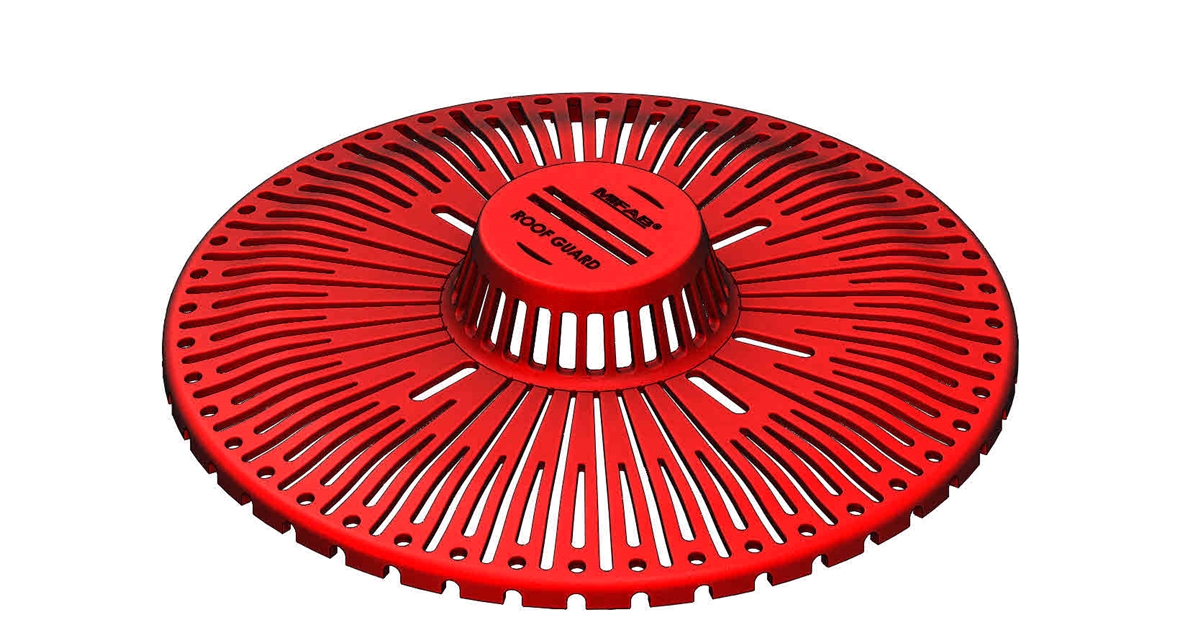

two 19" diameter cast iron RoofGuard dome strainers with horizontal and perimeter
drainage slot to prevent clogging of the roof domes.

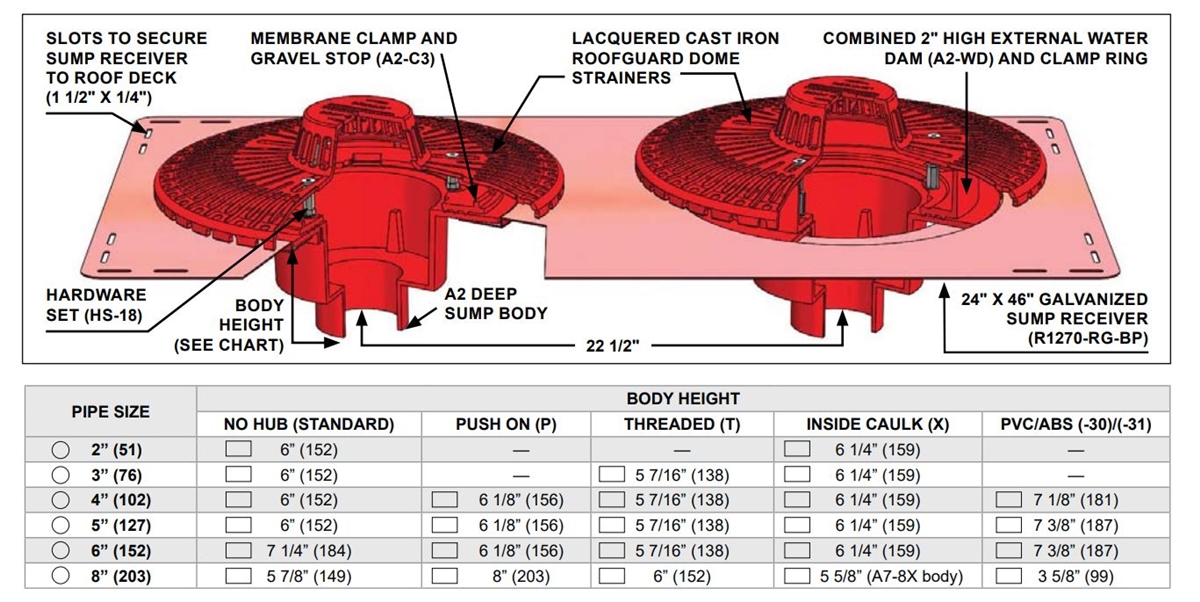

Options for 2", 3", 4" 6", & 8" No Hub, 2", 3", 4", 5" & 6" Inside Caulk and Threaded, or 2", 3", 4", & 6" Push On outlets. Additional option selections for Under Deck Clamp, Vandal Proof Screws, and Adjustable Extension.
Please Choose Outlet type, Pipe Size, and any additional options. "Configured Base Price" is for the -2 [ 2" Pipe Size ] and NH [ No-Hub Outlet ] options. There are additional costs for Threaded outlets, 5", 6", and 8" Pipe sizes, and additional options noted in the Option Selections.
Roof Drains are subject to availability as they are dependent on options/configurations ordered. Availability will be verified upon order. Some common items are readily available however lead times may vary.
Our listings contain the
most common or recommended product selections. If you do not see a Product,
Option, or need parts, please contact us and we will be glad to help you.
