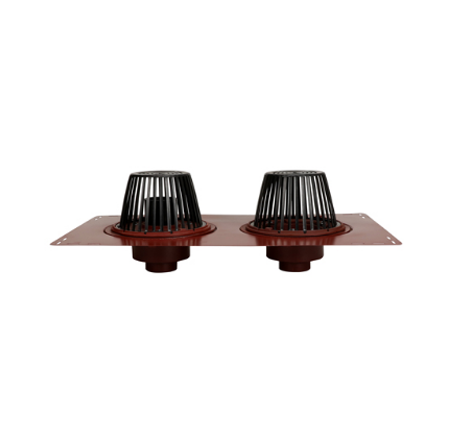

Mifab R1270 15" Combined Large Sump Cast Iron Roof Drain & Secondary Overflow Drain System

Mifab R1270 Combined Large Sump Cast Iron Roof Drain & Secondary Overflow Drain

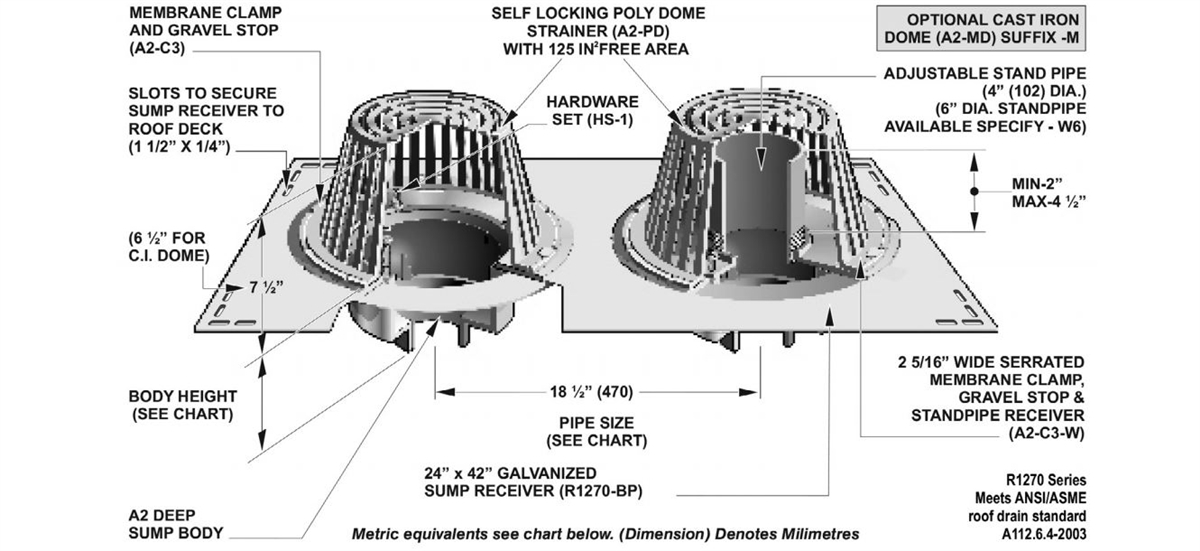

Mifab R1270 combined large sump roof drain and secondary overflow system; consisting of 24” x 42 “ galvanized sump receiver, two lacquered cast iron roof drain bodies with 15” diameter anchor flange, cast iron waterproofing membrane clamp rings with integral gravel stop, one 4” ABS overflow standpipe and two self-locking polyethylene or Cast Iron dome strainers with a combined free area of 250 square inches. Additional option selections for Under Deck Clamp, Stainless Steel Mesh over dome, or Stainless Steel Ballast Guard for I.R.M.A Roofs.

Please Choose Your Dome Material Type, Outlet type, Pipe Size, and any additional options. "Configured Base Price" is for the -Poly [ Poly Dome ] and NH [ No-Hub Outlet ] options. There are additional costs for Threaded outlets, Cast Iron Dome material, and additional options noted in the Option Selections.

Our listings contain the most common or recommended product selections. If you do not see a Product, Option, or need parts, please contact us and we will be glad to help you.
